Scope Pro CLI

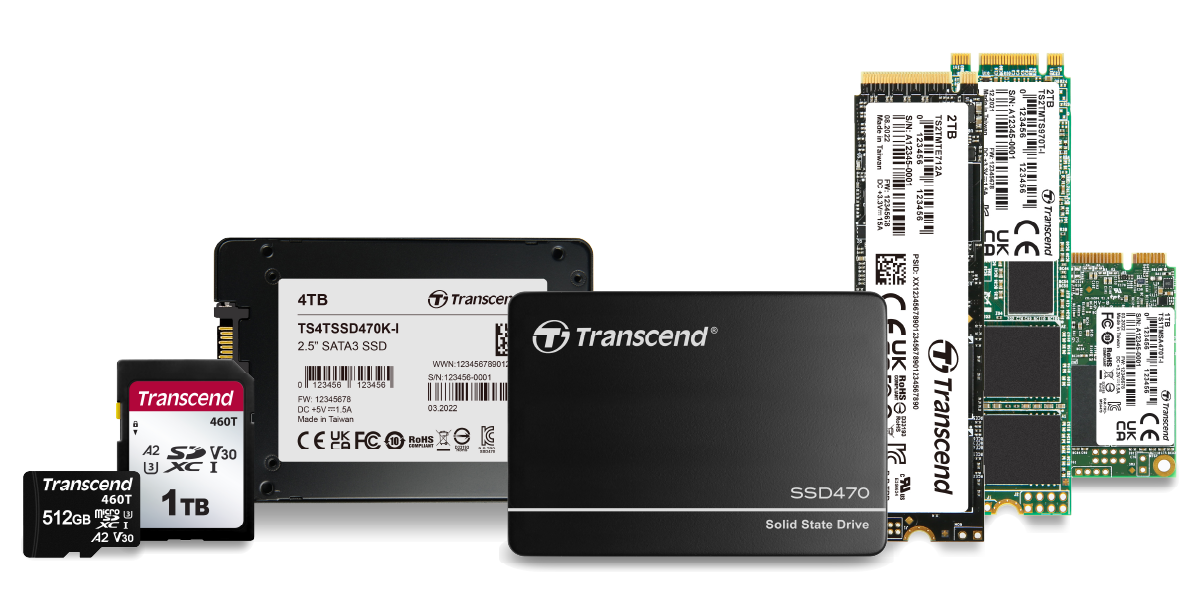

1. Support Products
- Transcend Embedded SSD
- Transcned SD Card
- SDC460T
- SDC220I
- SD100I / SDHC100I
- Transcend MicroSD Card
- USD460T
- USD430T
- USD450I
- USD230I
- USD460I
- USD465T
- USD465I
2. System Requirements
- Ubuntu 16.04 LTS
- Ubuntu 18.04 LTS
- Ubuntu 20.04 LTS
- Ubuntu 22.04 LTS
Note: You must have Administrator privileges to run the ScopePro.
3. Package Installation
1. Add ScopePro repository to system's Software Sources
$ sudo add-apt-repository ppa:transcend-rd/scopepro-cli
2. Update resource
$ sudo apt update
3. Install ScopePro package
$ sudo apt-get install scopepro-cli
4. Functions
Drive Status
-
Execute the following command to display standard drive information of the specified disk.
-
SSD:
$ sudo scopepro -id /dev/sda
---------- Disk Information ----------
Model :TS512GSSD470K
FW Version :22Z2UCFS
Serial No :H735380001
Support Interface :SATA
- SD / Micro SD Card:
$ sudo scopepro -id /dev/sda
type :SD
Manufacturer ID :0x74 Transcend
Product Name :USDU1
Product Revision :0x20
Manufacture Date :2024 sep
CRC checksum :0x00
S.M.A.R.T Status
-
Execute the following command to display S.M.A.R.T status of the specified disk.
-
SSD:
$ sudo scopepro -smart /dev/sda
---------------- S.M.A.R.T Information ----------------
01 Read Error Rate 0
05 Reallocated Sectors Count 1
09 Power-On Hours 5520
OC Power Cycle Count 664
A0 Uncorrectable sectors count when read/write 1
A1 Number of Valid Spare Blocks 108
A3 Number of Initial Invalid Blocks 47
A4 Total Erase Count 55937
A5 Maximum Erase Count 78
A6 Minimum Erase Count 9
A7 Average Erase Count 27
A8 Max Erase Count of Spec 3000
A9 Remain Life (percentage) 100
AF Worst Component Program Fail Count 0
BO Worst Component Erase Fail Count 0
B1 Total Wear Level Count 0
B2 Grown Bad Block Count 0
B5 Total Program Fail Count 0
B6 Total Erase Fail Count 0
CO Sudden Power Count 164
C2 Enclosure Temperature 26
C3 Hardware ECC Recovered 870
C4 Reallocation Event Count 2
C5 Current Pending Sector Count 0
C6 Reported Uncorrectable Errors 1
C7 CRC Error Count 8
E8 Available Reserved Space 100
F1 Host 32MB/unit Written (TLC) 733037
F2 Host 32MB/unit Read (TLC) 766228
F5 NAND 32MB/unit Written (TLC) 894992
- SD / Micro SD Card:
$ sudo scopepro -smart /dev/mmcblk0
---------------- S.M.A.R.T Information ----------------
Card Marker: Transcend
Bus Width: 4 bit Width
Secured Mode: Not in the secured mode
Speed Class: Class 10
UHS Speed Grade: 30MB/s and above
New Bad block Count: 0
Spare Block: 0
Min Erase Count: 0
Max Erase count: 1
Total Erase Count: 3
Avg. Erase Count: 0
NAND P/E Cycle: 3000
Card Life: 100%
Current SD Card Speed Mode: SDR104
Total Write CRC Count: 0
Power On/Off Count: 9
NAND Flash ID: 45-48-98-03-76-66
SMI SD Controller P/N: SM2706
SD Firmware Version: V0217
Abnormal Power Detect: 0
Disk Health
-
Execute the following command to display health info of the specified disk.
-
SSD / SD / Micro SD Card:
$ sudo scopepro -health /dev/sda
---------------- Health Information ----------------
Health Percentage: 100%
Secure Erase
- Execute the following command to do secure erase of the device.
$ sudo scopepro -secure_erase /dev/sda
Do you want to erase /dev/sda
Please enter 'Y' or 'N' to continue...
Y
Success
Self Test
(Only support with PCIe SSD)
Short
- Execute the following command to start a short device self-test operation.
$ sudo scopepro -selftest short /dev/nvme0n1
short self-test has begun.
Completion: 100%
Oeration completed: No errors found.
Extended
- Execute the following command to start a extended device self-test operation.
$ sudo scopepro -selftest extended /dev/nvme0n1
extended self-test has begun.
Completion: 100%
Oeration completed: No errors found.
DRAM Information
- Execute the following command to show SPD information of all Transcend dram on this computer. (Only support with DDR3/DDR4)
$ sudo scopepro -dram
[/dev/i2c-6:0x51]
--------------------- Module Information ---------------------
RAM Type :DDR4-3200
DIMM Type :UDIMM
Support ECC :Yes
Model Name :TS2GLH72V2B
Serial Number :H52432-0060
Module Manufacturer :Transcend
DRAM Manufacturer :Samsung
Week/Year :48/22
Voltage :1.20 V
--------------------- EEPROM Information ---------------------
SPD Revision :1.2
Number of Bytes in SPD Device :512
Number of Bytes Used :512
--------------------- Memory Information ---------------------
Module size :16GB
Banks x Rows x Columns x Bits :16 x 16 x 10 x 64
SDRAM Device width :8 bits
Ranks :2
Rank Mix :Symmetrical
Primary Bus Width :64 bits
Bus with Extension :8 bits
AA-RCD-RP-RAS (cycle) :22-22-22-52
Supported CAS Latencies :24T,22T,21T,20T,19T,18T,17T,16T,15T,14T,13T,12T,11T,10T
--------------------- Timing Information ---------------------
Minimum Cycle Time (tCKMin) :0.625 ns
Maximum Cycle Time (tCKMax) :1.600 ns
Minimum CAS Latency (tAA) :13.750 ns
Minimum RAS to CAS Delay (tRCD) :13.750 ns
Minimum Row Precharge Delay (tRP) :13.750 ns
Minimum Active to Precharge Delay (tRAS) :32.000 ns
Minimum Active to Auto-Refresh Delay (tRC) :45.750 ns
Minimum Recovery Delay (tRFC1) :350.000 ns
Minimum Recovery Delay (tRFC2) :260.000 ns
Minimum Recovery Delay (tRFC3) :160.000 ns
Minimum Four Activate Window Delay (tFAW) :21.000 ns
Minimum Row Active to Row Active Delay (tRRD S) :2.500 ns
Minimum Row Active to Row Active Delay (tRRD_L) :4.900 ns
Minimum CAS to CAS Delay (tCCD L) :5.000 ns
Minimum Write Recovery Time (tWR) :15.000 ns
Minimum Write to Read Time (tWTR S) :2.500 ns
Minimum Write to Read Time (tWTR L) :7.500 ns
SD Card Security
(Only support with Transcend RDF5 Card Reader)
SD Lock
- Execute the following command to set SD password and lock the card.
$ sudo scopepro -sd_lock 1234 /dev/sda
Status: Lock
SD Unlock
- Execute the following command to unlock SD by password.
$ sudo scopepro -sd_unlock 1234 /dev/sda
Status: Unlock
Clear SD Password
- Execute the following command to clear SD password.
$ sudo scopepro -sd_clear_pwd 1234 /dev/sda
Status: Unlock
SD Status
- Execute the following command to check SD secure status.
$ sudo scopepro -sd_status /dev/sda
Device is Locked
SD Erase
- Execute the following command to force erase SD card. (Only support USD460I with FW: W0519)
$ sudo scopepro -sd_erase /dev/sda
Warning: all card data will be erased together with PWD
Do you want to continue? [Y/n] Y
Erase success. Please use mkfs command to format.
5. Others
- Execute the following command to get help about other command usage.
$ sudo scopepro -h
Usage:
scopepro
show all information of devices
scopepro [option] <device>
show specific information of the device by option
scopepro -dram
show SPD information of all Transcend dram on this computer
scopepro -selftest [self-test option] <device>
execute NVMe SSD self-test
Options:
-all: list all information of the device
-id: list id table information of the device
-smart: list S.M.A.R.T table information of the device
-health: list the health information of the device
-secure_erase: do secure erase of the device
-license: display the End User License Agreement and Statement
-V: display the application version
Self-test Options:
short: start a short device self-test operation
extended: start a extended device self-test operation
SD Secure Usage:
scopepro [SD option] <password> <device>
do secure function of SD device
SD Options:
-sd_lock: set SD password and lock the card
-sd_unlock: unlock SD by password
-sd_clear_pwd: clear SD password
-sd_status: scopepro -sd_status <device> to check SD secure status
-sd_erase: scopepro -sd_erase <device> to force erase SD card (only support USD460I with FW=V0902D)
