| 2.5" SATA III 6Gb/s | |||||
SSD230 |
SSD220 |

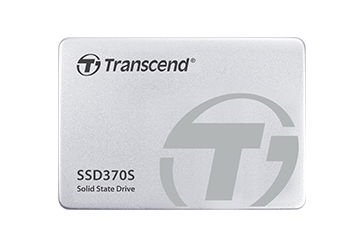

SSD370 |
SSD360 |

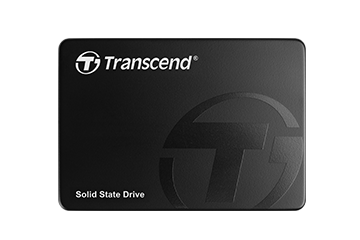

SSD340 |
|
|---|---|---|---|---|---|
| Dimensions (max.) | Aluminum: 100mm x 69.85mm x 6.8mm (3.94" x 2.75" x 0.28") Plastic: 99.8mm x 69.8mm x 7mm (3.93" x 2.75" x 0.275") |
||||
| Weight (max.) | 63g (2.22 oz) | 63g (2.22 oz) | 63g (2.22 oz) | 63g (2.22 oz) | 63g (2.22 oz) |
| Capacity | 128GB, 256GB, 512GB, 1TB | 120GB, 240GB, 480GB, 960GB | 32GB, 64GB, 128GB, 256GB, 512GB, 1TB | 32GB, 64GB, 128GB, 256GB, 512GB | 32GB, 64GB, 128GB, 256GB |
| Maximum Sequential Read/Write Performance (ATTO) |
560MB/s, 520MB/s | 550MB/s, 450MB/s | 560MB/s, 460MB/s | 540MB/s, 340MB/s | 550MB/s, 330MB/s |
| Maximum 4K Random Read/Write Performance (CrystalDiskMark) |
340MB/s, 330MB/s | 310MB/s, 310MB/s | 300MB/s, 300MB/s | 140MB/s, 300MB/s | 310MB/s, 320MB/s |
| Maximum 4K Random Read/Write Performance (IOmeter) |
85,000 IOPS, 85,000 IOPS |
78,000 IOPS, 78,000 IOPS |
75,000 IOPS, 75,000 IOPS |
35,000 IOPS, 70,000 IOPS |
75,000 IOPS, 80,000 IOPS |
| Operating Voltage | 5V±5% | 5V±10% | 5V±5% | 5V±5% | 5V±5% |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) | 0°C (32°F) ~ 60°C (140°F) | 0°C (32°F) ~ 70°C (158°F) | ||
| Storage Media | 3D TLC NAND Flash Memory | TLC NAND Flash Memory | MLC NAND Flash Memory | ||
| TRIM & NCQ Command |  |
|
|
|
|
| S.M.A.R.T. | |
|
|
|
|
| DDR3 DRAM Cache | |
- | |
- | |
| Advanced Garbage Collection | |
|
|
|
|
| DevSleep Mode | |
|
|
|
|
| Bracket Included | - | - | |
- | |
| Warranty | Three-year Limited Warranty | ||||
